Innovated 8 passage high efficiency vane plate mist eliminator

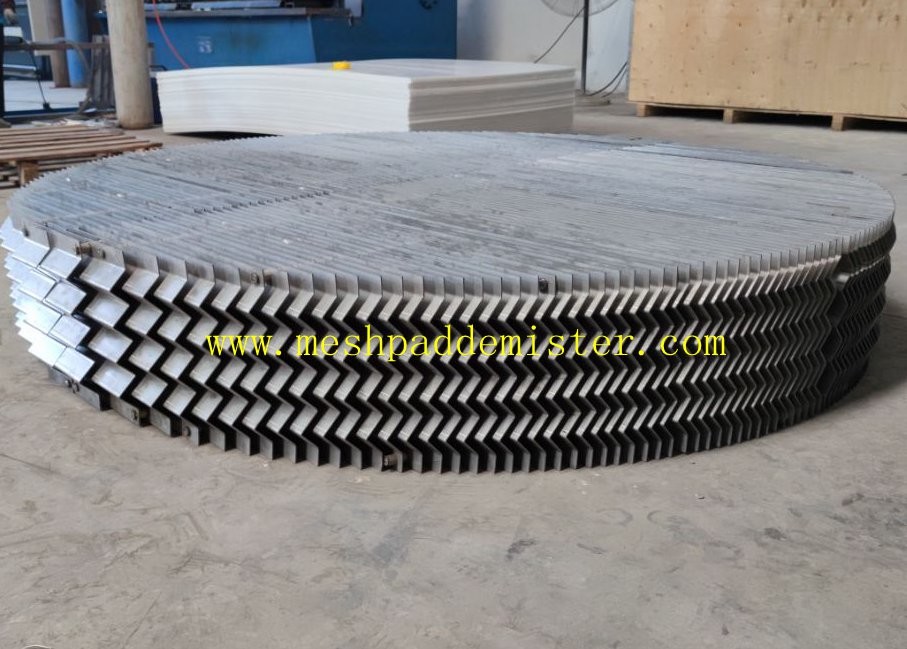

1. 8 passage vane plate mist eliminator
I am very excited to introduce this innovated multi-passage high efficiency vane pack mist eliminator. For its special multi-angle structure, it shows extremely high mist eliminating efficiency. Also this type of vane plate provides much more surface area than normal ones. In fact in some distillation towers as we know, it is used as a kind of structured packing, for gas liquid mass transfer. With our brank-new 300 tons water pressure machines, we can make this vane pack mist eliminator well and fast.
2. 8 passage vane plate mist eliminator basic data
| Material | 304, 316L, 410S, etc. |
| Plate thickness | 1mm, 2mm, etc. |
| Plate height | 300mm |
| Peak height | 30mm |
| Peak angle | 90° |
| Pitch of vane | 20mm, 25mm, 30mm, etc. |
| Contructure method | connection rod |
3. 8 passage vane plate mist eliminator technical characteristics:
Unique design, without dead angle of demisting in the whole tower, triangle installation form, good stability, unique angle design. Hook on the chevron plate is an option, to gain droplet collection acceleration, and improve separation efficiency.
4. Vane plate mist eliminator working theory:
The gas stream flow through the first and second vane packs to eliminate the target-size mist. The standard module of the first stage vane pack demister is with pitch of vane 30mm, and the standard module of the second stage vane pack demister is with pitch of vane 25mm. The vane plates are fixed by positioning rods (both the upper part and the lower part are fixed). The positioning rods and each chevron plate have corresponding round holes, which are penetrated vertically with round rods, and the chevron plates and positioning rods are penetrated into the fastener layer by layer. Then it is welded with the blade to ensure that the positioning rod and the round rod will not fall off, and at the same time, the bearing capacity of the vane pack demister is increased.
5. Vane plate mist eliminator in flue gas desulphurization industry
Flue gas desulphurization industry is becoming more and more important as we pay more attention and effort to the environmental protection all over the world. In Hualai we produce vane pack demister mist eliminators for years, we are expecting to make more contributions to this global action. Welcome your contact anytime!
6. Beautiful Hualai 8 passage vane plate mist eliminator:
With over 12 years experiences in demister, mist eliminator, tower packing and tower internals, we are capable to help customers from designing, manufacturing, shipping and installing. Welcome your inquiry!
Product Tags:
|
|

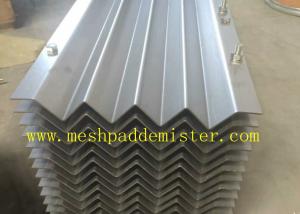

300mm 8 Passage Vane Plate Mesh Pad Mist Eliminator Images
|
