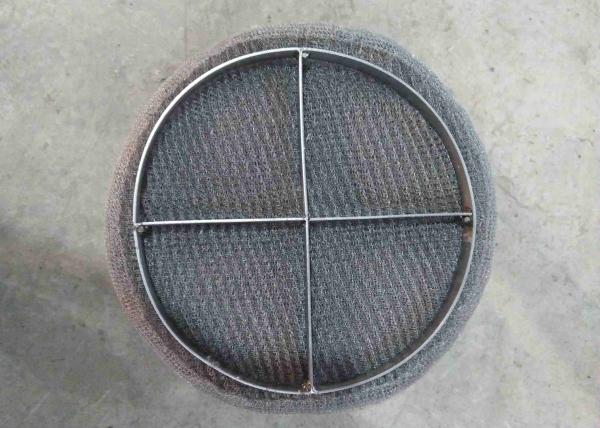

500mm wire mesh demister pad 911 mesh type or called 431 style ?
Wire Mesh Demister Specifications in this case
| Item | Value | Unit |
| Material | SS304 | / |
| Shape & Size | Φ500 | mm |
| Mesh Thickness | 100 | mm |
| Demsiter Height | 150 | mm |
| Wire Diameter | 0.28 | mm |
| Mesh Density | 144 | kg/m3 |
| Void Fraction | 0.982 | / |
| Specific Area | 260 | m2/m3 |
| Grids | 25*3 flat bar | mm |
Applications of wire mesh demister pad,
Reduce loss of valuable chemicals: demister pads markedly cut glycol, amine, or solvent consumption in absorption and regeneration towers.
Increase throughput capacity: demister pads allow a significant increase in throughput anywhere gases and liquids come into contact in process equipment.
Improve product purity: demister pads prevent contamination of side draws and overheads in refinery atmospheric and vacuum towers and other distillation columns.
Minimize contamination: demister pads can prevent the poisoning of expensive downstream catalysts or provide boiler feed water quality condensate from evaporator overheads.
Provide equipment protection: demister pads protect turbine, blower, and compressor blades, which can eliminate serious maintenance problems.
Reduce air pollution: demister pads help diminish droplet emissions to environmentally acceptable levels.
Though the demister is deemed the standard type because it is used in many fields, this model is strong and highly efficient. The demister is used in places where it is necessary to reduce accompanying airborne droplets to a minimum.
The demister safely functions because the design adapts to changes in gas or fluid flow rate. Generally, the 100mm mesh pad is used, but the mesh pad of greater thickness is used where the flow rate changes extensively, offering increased production.

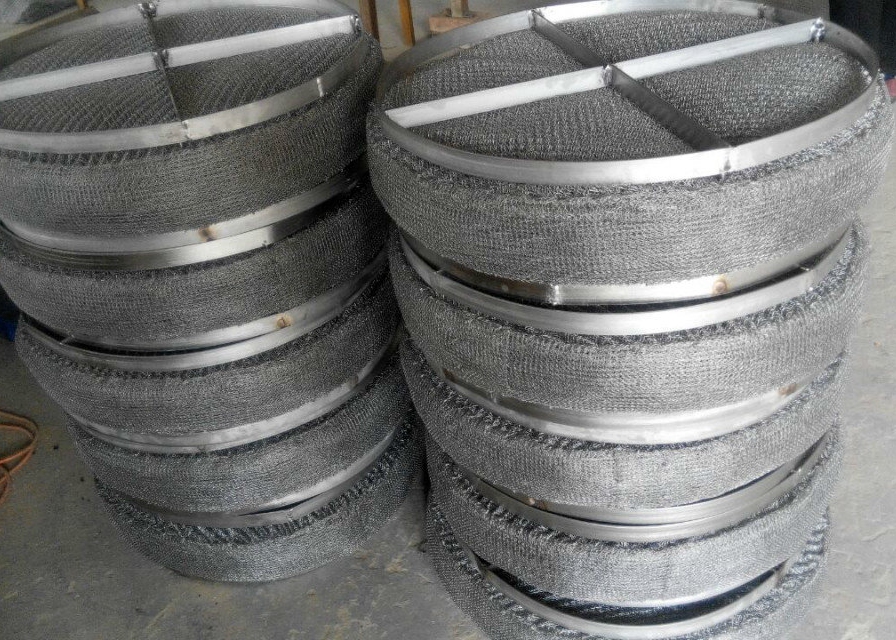

Ready for shipping of wire mesh demister pad:
Welcome your inquiry with any questions! Here in Hualai we are always ready to be helpful!
